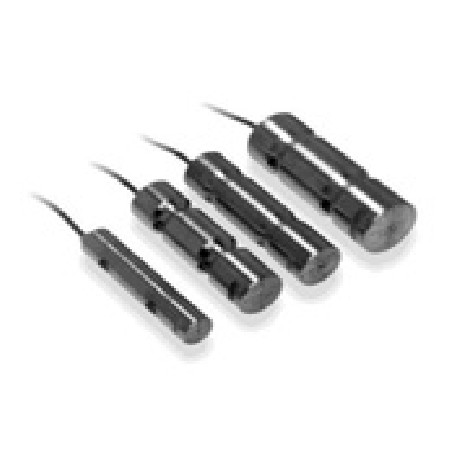

        TE CONNECTIVITY’s load pins, model FN1010, are designed to fit in the place of the regular mounting unit.

        The implantation is facilitated by the possibility of modifying a certain number of dimensions. The FN1010 is suitable for numerous applications on lifting motors and handling equipment. The load pins can be used to measure forces on rotating components (pulleys, sheaves, etc.) and can be directly mounted on shackles.

        The sensing element is fitted with thin film strain gages in a Wheatstone bridge circuit. All FN1010 Load Pins incorporate a keyed anti-rotation slot. Optionally, the load pins may be made watertight for certain applications while resting insensitive to hydrostatic pressure effects. Additionally, the FN1010 is available with an integrated high-level analogue output.

        With a long standing experience as a designer and manufacturer of sensors, TE CONNECTIVITY often works with customers to design or customize sensors for specific uses and testing environments. On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        裝：負荷銷設計
量        程：10K～2000KN（2～400KLbf）
非  線  性：<±1%FS
輸        出：±20mV（4V；±5V；4～20mA可選）
工作模式：拉力和壓力
工作溫度：-20～80℃
特        點：嵌入凹槽裝配，雙向可選，可選密封防水結構
典型應用：起重機，船舶，起重檢測
